Unified Category-Level Object Detection and Pose Estimation using 3D Prototypes from RGB Images

Tom Fischer, Xiaojie Zhang, Eddy Ilg
ICCV 2025

đź“„ Paper đź’» Code

Abstract

Understanding not only what objects are present in an image but also where they are located and how they are oriented in 3D space is a central challenge in computer vision. Traditional category-level approaches often rely on depth sensors or treat detection and pose estimation as two separate tasks.
In this work, we introduce the first unified single-stage model that solves both problems jointly from RGB images only. By leveraging neural mesh models as 3D prototypes, our method learns a shared representation for categories and establishes dense 2D–3D correspondences. Combined with a robust multi-model fitting algorithm, this allows us to detect multiple objects and estimate their 9D pose (category, size, rotation, translation) in a single pass.

Key Contributions

At the core of our approach lies the concept of 3D prototypes: representative meshes that encode the geometry of object categories. The model establishes dense 2D–3D correspondences between RGB image features and prototype vertices, enabling both object detection and 9D pose estimation in a single stage.

  • First single-stage RGB-only framework for category-level multi-object detection and 9D pose estimation.
  • Prototype-based representation: 3D neural mesh models serve as category-level anchors, enabling robust correspondences between image features and 3D geometry.
  • Joint inference with RANSAC PnP: A multi-model fitting procedure detects multiple instances and refines their poses in one pipeline.
  • State-of-the-art performance: Achieves +22.9% improvement over previous best methods on REAL275 across scale-agnostic metrics.
  • Robustness to noise and corruption: Outperforms two-stage pipelines under image degradations, highlighting stability for real-world applications:contentReference.

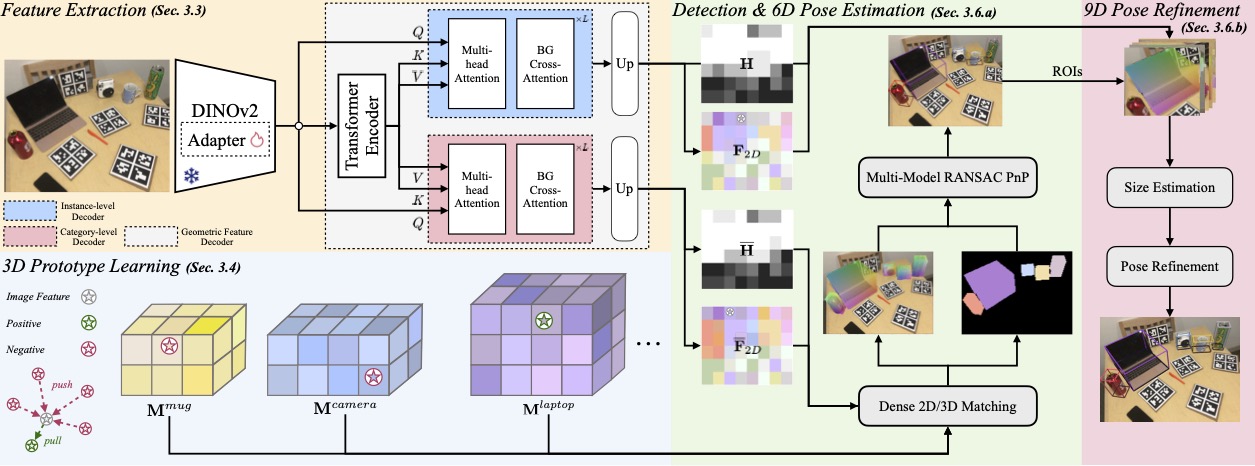

Method Overview

Our framework unifies detection and pose estimation using a single representation.

  • Feature extraction: A frozen DINOv2 backbone with lightweight adapters encodes image features, which are then aligned with category-level prototypes.
  • 3D prototypes: Each object category is represented by a neural mesh model that encodes geometry and learned vertex features.
  • 2D–3D matching: Dense correspondences between image features and prototype vertices are established, enabling detection and pose inference.
  • Pose estimation: Multi-model RANSAC PnP jointly detects multiple instances and estimates their initial 6D pose. A refinement stage further optimizes instance-specific size and improves accuracy:contentReference.

This design eliminates error propagation between detection and pose stages and ensures a more generalizable, category-level understanding (e.g., handling unseen mugs, laptops, or bottles).

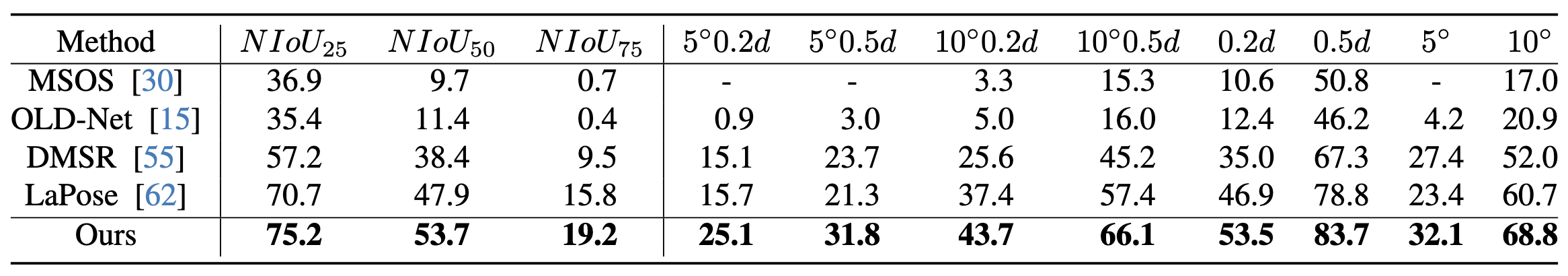

Results

Our model sets a new state of the art in RGB-only category-level pose estimation:

  • REAL275 benchmark: Improves average accuracy by 22.9% over the previous state of the art, across all scale-agnostic metrics.
  • CAMERA25 benchmark: Achieves highest accuracy on 9 out of 11 metrics, showing strong generalization from synthetic to real data.
  • Robustness: Maintains stable performance under common corruptions (blur, noise, compression, weather), where two-stage methods degrade significantly.
  • Qualitative results: Demonstrate more confident detections and improved rotation accuracy, especially in challenging categories like laptops:contentReference.

These results confirm that a single unified model is both more accurate and more robust than existing two-stage pipelines.

Citation

If you find this work useful in your research, please consider citing:

@article{fischer2025unified,
  title={Unified Category-Level Object Detection and Pose Estimation from RGB Images using 3D Prototypes},
  author={Fischer, Tom and Zhang, Xiaojie and Ilg, Eddy},
  journal={arXiv preprint arXiv:2508.02157},
  abbr={ICCV},
  year={2025},
  website={https://fischer-tom.github.io/projects/project1},
}

This work was conducted at the University of Technology Nuremberg under the supervision of Prof. Eddy Ilg and supported by the DFG GRK 2853/1 “Neuroexplicit Models of Language, Vision, and Action”.
